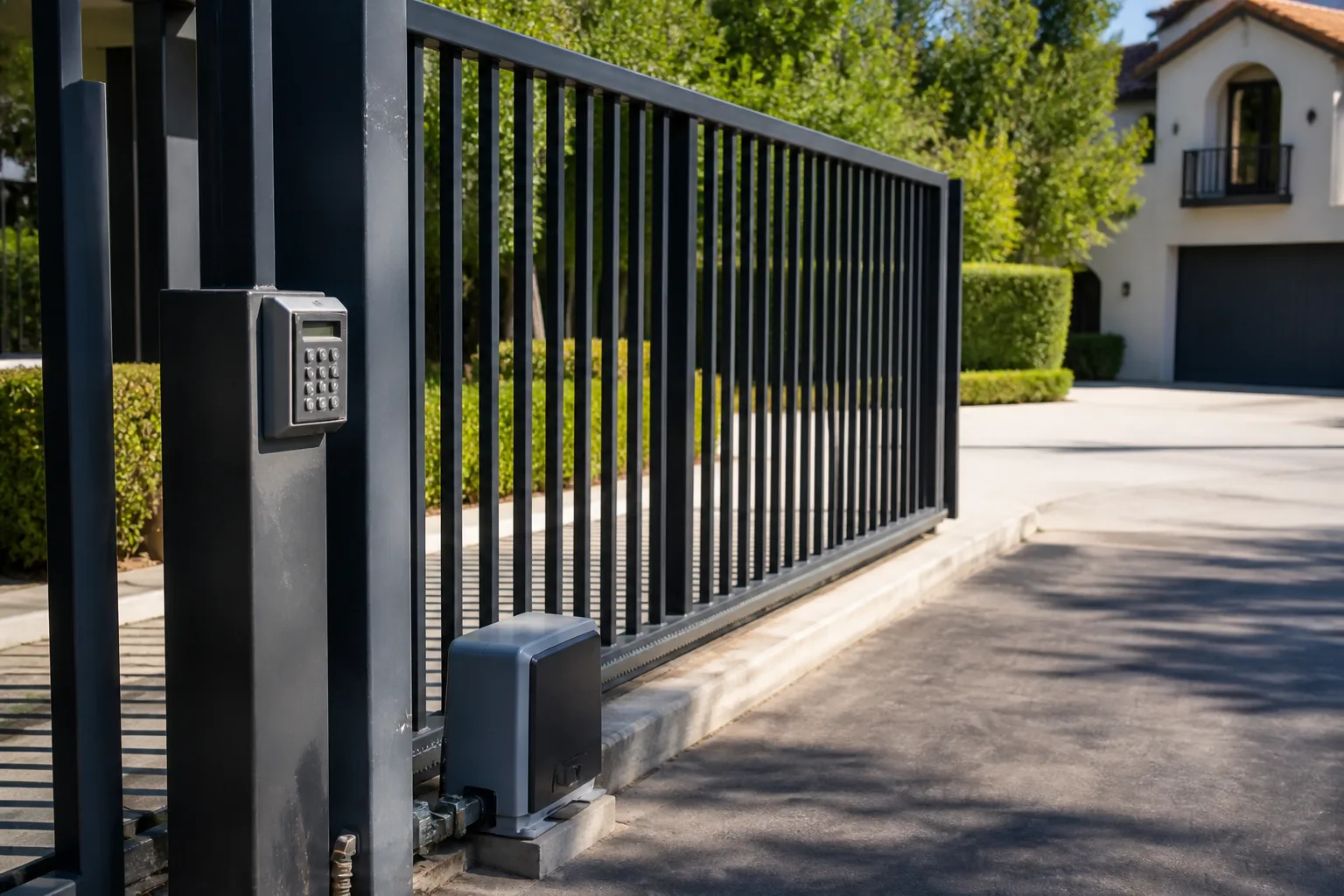

5 Mistakes to Avoid With Gate Access Control

5 Mistakes to Avoid With Gate Access Control

Most gate access control problems in Los Angeles aren’t caused by broken hardware. They’re caused by the system working exactly as programmed, just programmed wrong. After 14 years and 233 verified reviews, we’ve found that five specific installation and configuration mistakes create the vast majority of service calls we handle across the city. If you’d rather not troubleshoot these yourself, call us at (833) 805-4890 for a free estimate.

Call (833) 805-4890

Here’s the mistake that still makes me shake my head: a property manager in Westwood called us because their Ironwood Gate Repair Los Angeles home credential system was “randomly” denying fobs at 7 AM every Tuesday. The system wasn’t random. It was running a scheduled lockout rule someone had set two years earlier and forgotten. The hardware was fine. The programming was the problem. That’s the pattern we see again and again.

Mistake 1: Daisy-Chaining Power Off the Gate Operator’s Transformer

This is the most common cause of intermittent credential rejections with no error log, and it’s invisible until it isn’t.

Here’s what happens. An installer, or a handy property owner, needs 24V for the access control board and sees the gate operator has a 24V auxiliary output. Easy, right? Run a jumper and call it done. The problem is that access control boards draw consistent current for credential readers, keypads, and communication modules. Gate operator transformers are sized for motor load with a small buffer, not for continuous accessory draw.

The voltage drop isn’t enough to reboot the board. It’s just enough to dip the reader supply below threshold during motor operation, or during hot Los Angeles afternoons when transformer efficiency drops. The credential reads fine nine times out of ten. That tenth time? Denied. No error. The log shows a valid read that the board simply couldn’t process.

We’ve diagnosed this in Brentwood, Encino, and a four-plex over in Koreatown where the owner had replaced three keypads before we traced the real issue. Dedicated power supply, problem gone. The fix costs maybe $40 in parts and an hour of labor. The guessing game costs hundreds.

What to do instead: Power the access control from its own dedicated transformer, sized for the board’s rated draw plus 20%. If you’re adding to an existing system, measure voltage at the reader terminals during full gate operation, not at idle.

Mistake 2: Not Documenting the Master Code or Admin Credentials

Every access control board has a factory master code or hardware reset procedure. Every single one. And every month in Los Angeles, we get calls from someone who doesn’t know theirs.

The recovery path varies wildly by brand. With some LiftMaster commercial systems, we can factory-reset through a documented jumper sequence if we have the board in hand. With certain FAAC controllers, losing the admin credential means contacting the factory with proof of purchase, a process that takes days. Some older BFT boards have no remote recovery at all, a full board replacement if the master is lost.

We had a property management company in Santa Monica with a failed keypad on a 2016 installation. Previous vendor gone, no documentation, no master code. The board was a discontinued model. Replacement, reprogramming, and re-credentialing every tenant: $2,400. A three-line text file saved to Dropbox would have prevented it.

What to do instead: At installation, record the master code, admin credentials, and factory reset procedure in two locations. Update it when changed. Treat it like the keys to the building, because functionally, it is.

Mistake 3: Installing Cellular Systems Without Checking Signal Strength at the Gate Column

Cellular-connected access control is fantastic for properties without reliable Wi-Fi reach or where hardwired ethernet isn’t practical. We’ve installed dozens across Los Angeles hillsides and remote commercial lots. But “cellular works here” and “cellular works at the gate column” are not the same statement.

The one-bar problem is real. A cellular board that shows signal at head height, where someone tested with a phone, drops to marginal when mounted inside a metal gate column with concrete fill and a steel cap. The board connects. It even reports healthy most days. But credential verification that should take two seconds takes thirty. Tenants punch the keypad, wait, assume it failed, punch again. Now there’s a queue at rush hour.

Worse, some boards under marginal signal don’t fail gracefully. They queue commands locally, then batch-transmit, creating apparent “delays” that are actually normal behavior for the connection quality. We’ve seen property managers replace perfectly good Linear cellular boards when the real fix was an external antenna relocation or a signal booster.

What to do instead: Test signal with the actual modem, at the actual mounting location, with the column closed up. If you’re below two bars consistently, plan for an external antenna or cellular repeater before installation day.

Mistake 4: Adding Users Beyond the System’s Tested Capacity

This one surprises people because there’s no error message. The system doesn’t beep and say “full.” It just gets unreliable.

Every access control board has a tested user capacity. Not the theoretical maximum in the brochure, the number where the manufacturer certifies consistent read-and-response times. When you push past that, behavior gets weird in specific ways: credential reads take longer, the board occasionally misses a fob entirely, or scheduled rules execute late.

We saw this at a Los Angeles HOA with a DoorKing system rated for 1,000 users that had accumulated 1,400 credentials over eight years of tenant turnover. The property manager thought the readers were failing because “sometimes it takes two tries.” The readers were fine. The board was spending extra cycles searching a bloated database. A credential audit and purge, back to 900 active users, fixed it completely.

What to do instead: Know your system’s tested capacity, not its theoretical one. Audit credentials annually. Deactivate, don’t just ignore, former tenants and employees. If you’re genuinely over capacity, that’s the time to spec a larger controller, not to tolerate flaky behavior.

Mistake 5: Skipping Exit Loop or Exit Button Testing After Any Gate Adjustment

The exit loop or exit button is the access control component most likely to be bumped out of calibration by unrelated work, and it’s the one everyone forgets to check.

Adjust the gate travel because it’s closing too hard? The armature or slide mechanism shifts. Maybe it doesn’t hit the exit button mounting bracket directly, but vibration loosens the bracket over the next two weeks. Maybe the loop detector sensitivity was borderline and the new close force changes the vehicle detection signature just enough.

We got called to a commercial gate in Culver City where the exit loop “suddenly” stopped working after a motor replacement. The motor replacement was fine. The loop itself was fine. The detector sensitivity pot had been bumped during the wiring disconnect, probably by a sleeve or a tool box. Five minutes with a screwdriver. But because nobody tested the exit path after finishing the motor work, tenants were stuck inside for a morning until someone found the manual release.

What to do instead: After any gate service, adjustment, or motor work, test every access and exit path completely. Button, loop, keypad, fob reader, vehicle detector. The two minutes it takes prevents the emergency call.

When to Call a Pro

If you’re chasing intermittent problems with no error log, if you’ve lost admin access and don’t know your recovery path, or if your cellular-connected system has developed frustrating delays, the issue is probably in the configuration layer, not the hardware. That’s where 14 years of gate-only experience matters. Gate Repair in Sacramento and Los Angeles properties alike, we’ve traced problems that generalists missed because they don’t spend every day inside these specific boards.

Related services in Los Angeles: Gate Installation in Sacramento for new access control integration, or Gate Motor & Opener in Sacramento if your power situation needs review alongside the control system.

The Bottom Line

Access control failures look like technology problems, but they’re usually decision problems. Power planning, documentation discipline, signal verification, capacity management, and post-work testing. None of these require exotic knowledge. They require treating the system as interconnected infrastructure, not a collection of separate parts that happen to live near each other.

We’ve been called to too many Los Angeles properties where months of frustration traced to one of these five mistakes. The hardware was never broken. The programming was never wrong. The installation was just incomplete in a way that didn’t show up until daily use exposed it.

Key Takeaways:

• Power access control from its own dedicated transformer, never shared with the gate motor
• Document and secure master codes like physical keys, with off-site backup
• Test cellular signal at the actual mounted location, not standing nearby with a phone
• Stay under tested user capacity, audit credentials annually, deactivate don’t accumulate
• Test every exit path after any gate adjustment, motor service, or hardware change

If you’re in Los Angeles and your access control system is behaving unpredictably, Ironwood Gate Repair Los Angeles offers free estimates. David and his team will diagnose whether you’re looking at a hardware issue or a configuration fix. Call (833) 805-4890 and we’ll schedule a time that works.
