Most gate welding mistakes aren’t about bad technique — they’re about fixing the wrong thing. In our 14 years of gate-only work across Los Angeles, we’ve seen perfectly good welds fail because someone addressed the symptom instead of the cause. If you’d rather skip the diagnostic work and get it done right the first time, call us at (833) 805-4890 for a free estimate.

Call (833) 805-4890

Here’s the pattern we see constantly: a property owner notices a bent gate arm, replaces it with a new one, and twelve months later it’s bent again. The arm wasn’t the problem. The post was leaning, or the hinges were undersized, or the operator was out of sync and slamming the gate against its stops. Replacing parts without understanding why they failed is the single most expensive mistake in gate repair.

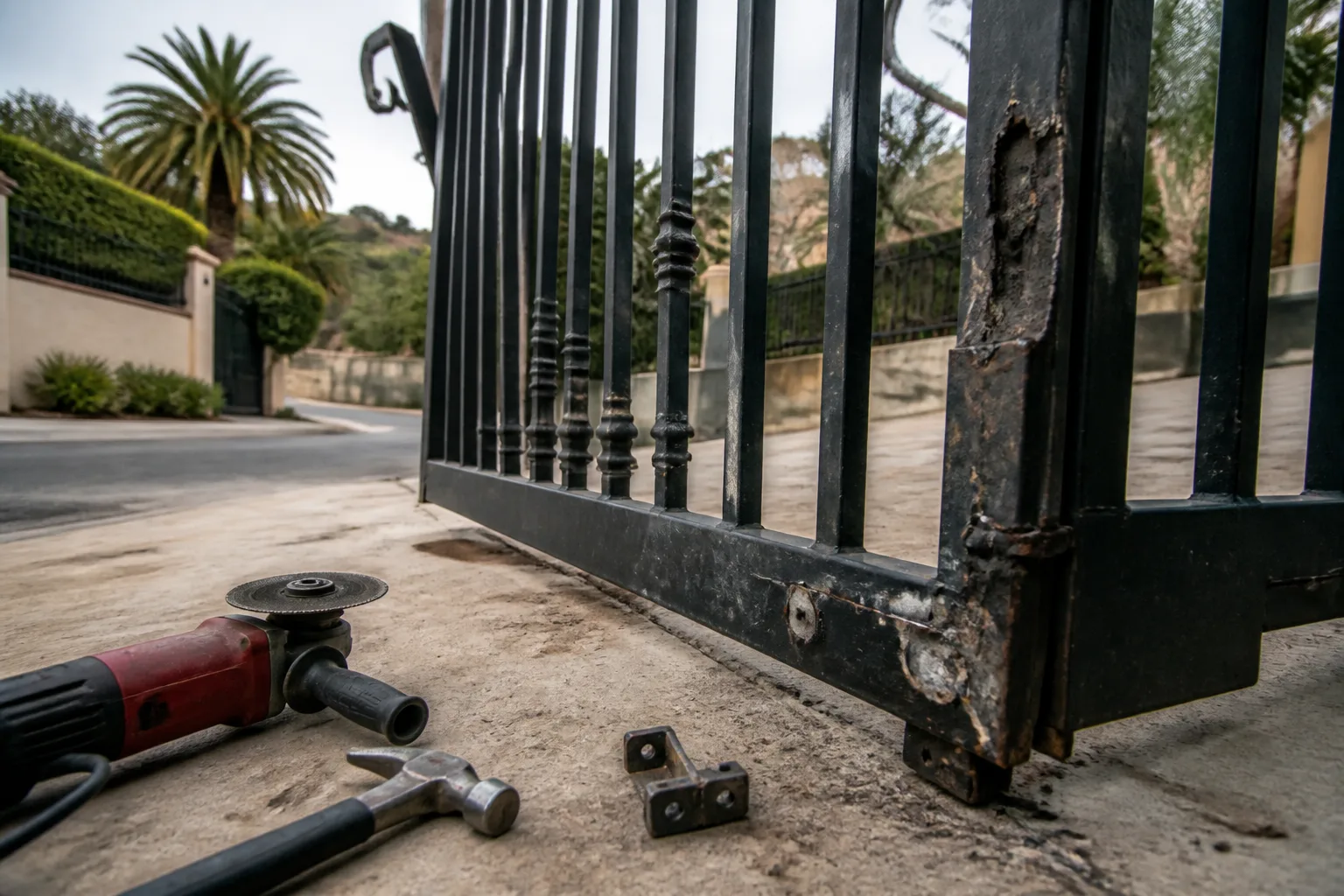

1. Welding Over Rust Without Proper Surface Preparation

This one looks fine in photos and holds up just long enough for the contractor to cash the check. We see it all over Los Angeles, especially near the coast where salt air accelerates everything.

Here’s what happens: rust is iron oxide, and it’s porous. When you weld over it, the weld metal bonds to a crumbly, oxygen-rich layer instead of solid steel. The heat drives moisture deeper into the remaining rust pockets. For about 90 days, the repair looks solid. Then the expansion and contraction of daily gate cycles — plus whatever moisture we get in a Los Angeles winter — opens micro-cracks at the weld boundary. The separation happens faster than the original failure because you’ve now trapped active corrosion under a hard weld cap.

The right approach is grinding to bright metal, sometimes cutting back past the visible rust to find where the steel is still sound, then building back with matching filler. We carry portable grinders and wire wheels on every truck for exactly this reason. Ironwood Gate Repair Los Angeles home

What to check:

• Is the rust surface-only, or has it penetrated the section?
• After grinding, does the remaining metal have enough cross-section to carry the load?
• Is the gate in a high-moisture zone — near sprinklers, pools, or ocean exposure?

2. Using Hardware-Store Hinges on Heavy Ornamental Iron Gates

Standard butt hinges from the local hardware store are rated for residential doors — typically 75 to 150 pounds per pair. An ornamental iron gate in a Los Angeles hillside neighborhood can easily run 300 to 500 pounds, especially with scrollwork or solid infill panels.

The math is simple but rarely done. A 400-pound gate on two hinges puts 200 pounds per hinge in static load. Add dynamic load from wind, impact, or operator force, and you’re asking a $12 hinge to manage forces it was never designed for. The barrel deforms, the pin loosens, and the gate begins to sag. Sagging changes the geometry, which overloads the operator arm, which bends or breaks that too.

We spec ball-bearing or greaseable barrel hinges with published load ratings — usually 1,000 pounds or more per hinge for heavy gates. The upfront cost difference is maybe $40 per hinge. The callback cost of a failed repair is a full day, replacement parts, and a frustrated customer who thought the problem was solved.

David and his team keep a range of heavy-duty hinges in stock because we’ve learned it’s faster to install the right part than to explain why the cheap one failed.

3. Not Checking Gate Plumb and Level Before Welding

This is the mistake that locks failure into the structure permanently. We were called to a job in Hancock Park last year where a previous welder had reinforced a cracked gate frame with 3/8-inch plate — beautiful work, clean beads, good penetration. The gate failed six months later at a completely different point because it was still racked. The weld repair had simply frozen the misalignment into place, concentrating stress at the next weakest point.

A gate that’s out of plumb or level is under constant torsion. Every cycle flexes it slightly. When you weld a repair onto a twisted frame, you’re building strength into the wrong geometry. The weld itself doesn’t fail — the structure fails around it.

Our process on any structural repair: check the posts with a long level, string the gate for straightness, and verify the operator mount isn’t contributing to the twist. Sometimes the fix isn’t welding at all — it’s resetting a post, adjusting the operator arm geometry, or replacing a hinge that’s been letting the gate settle for years. Gate Repair in Sacramento

When to call a pro: If your gate has visible twist, if it binds in certain weather, or if you’ve already had one weld repair fail, the problem is probably systemic. We diagnose plumb, level, and operator synchronization as standard on every structural call.

4. Using Mismatched Metal Stock on Aluminum Gates

Aluminum gates are common in Los Angeles for good reason — they don’t rust, they’re lighter, and they handle coastal air better than steel. But when they need repair, the temptation is to grab whatever steel scrap is handy and weld or bolt it on.

Here’s the problem: aluminum and steel create a galvanic couple. In the presence of any moisture — morning dew, sprinkler overspray, occasional rain — the aluminum becomes the anode and sacrifices itself to protect the steel. The corrosion starts immediately, even if you paint over it. Within a year, the aluminum around your steel patch is pitted and weakened. The steel patch is fine. The gate is worse.

The right materials exist: 6061-T6 aluminum plate, 5356 filler wire for MIG or TIG repair, aluminum-specific hardware with isolation coatings. We stock these because we’ve made the mistake early in our career and learned from it. A gate-only specialist can’t afford to be guessing on material compatibility.

This applies to fasteners too. A steel bolt through an aluminum frame with no isolation washer or sleeve will wallow out the hole and seize solid within two years.

5. Authorizing Weld Repairs Without Checking Post and Footing Condition

This is the underground failure that makes every above-ground repair temporary. We’ve lost count of how many times we’ve been called to “fix the gate” and found the post moving in its footing.

Concrete footings in Los Angeles are sized for the gate load at installation. Over years, soil movement, water intrusion, or termite damage to wood posts underground compromises that foundation. The post leans. The gate geometry changes. Hinges bind, operators strain, frames crack. You can weld and re-weld the frame forever — if the post is moving, nothing stays fixed.

We check post stability on every structural repair call. Rock the post by hand. Look for concrete cracking at grade. Probe for soft soil or voids. If the footing is failing, we quote that repair honestly rather than welding over the real problem. Sometimes it’s re-pouring concrete, sometimes it’s replacing a rotted wood core in a steel post shell, sometimes it’s adding a stabilization bracket.

The hard truth: a weld repair on a moving post is a waste of your money and our reputation. David Kaplan serves as Field Supervisor on these calls specifically because the decision to fix the gate or fix the foundation requires someone with final accountability present on site.

Related services in Los Angeles: For motor and access control issues that compound structural problems, see our Gate Motor & Opener in Sacramento and Gate Installation in Sacramento pages.

The Bottom Line

Good gate welding isn’t about making metal stick together. It’s about understanding why it came apart in the first place. The five mistakes above share one theme: they treat the visible failure as the problem, when it’s almost always a symptom of something upstream — rust prep, load math, geometry, material compatibility, or foundation stability.

Key Takeaways:

• Grind to bright metal before welding — never over rust
• Match hinge capacity to actual gate weight, not guesswork
• Verify plumb and level before any structural weld
• Use aluminum-compatible materials on aluminum gates exclusively
• Check post and footing stability before authorizing frame repairs

We’ve built our 14-year reputation and 233 verified reviews on fixing gates once. If you’re in Los Angeles and dealing with a gate that’s been “repaired” multiple times without staying fixed, the diagnosis was probably wrong. Ironwood Gate Repair Los Angeles offers free estimates — call (833) 805-4890 and we’ll send David or a senior technician to find the actual problem.
